Institution Keyed Mortise Door Lock and Lever Trim Set with Profile Cylinder for Commercial Entrance Doors in Satin Stainless Steel Finish

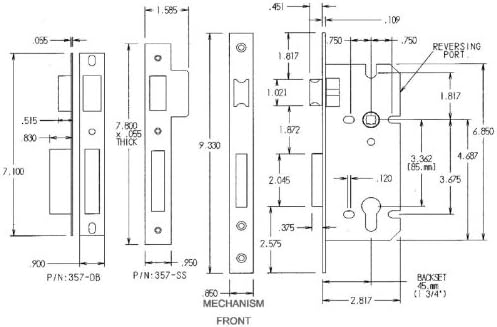

The Institution Lever Set by FPL Door Locks brings the look and function of European door hardware along with modern and contemporary design to the commercial setting. The mortise lock features a two stage bolt that extends 3/8” with one revolution of the European profile cylinder and a full 3/4” with a second revolution. The European profile cylinder is securely attached to the mortise lock through the mechanism face plate and cannot be removed from either side of the door. Stainless steel and steel construction insures strength and durability. Outer stainless steel trim plates attach to inner steel plates that bolt together through the door resulting in no exposed trim mounting screws on either side of the door. The matching privacy lever set is also available and listed separately. Technical Details: US32D Satin Stainless Steel Finish, 1-3/4” (45mm) backset, Fits 1-3/8” to 1-3/4” doors, 8”H x 1-3/4”W Trim Faceplate, 6-7/8”H x 2-7/8”W Mechanism Box with 7-1/8”H x 7/8”W Faceplate, 85mm Lock Pattern, Field reversible handing without opening lock case. **About the Manufacturer** For over 30 years FPL Door Locks has been manufacturing high quality door and window hardware for a wide range of applications. A wide variety of styles and finishes are available to satisfy many tastes. FPL products are designed to last for years to come and all mechanisms are backed by a Guarantee for Life Mechanism Limited Warranty.

• SC1 keyway in single profile cylinder with interior thumb turn
• Steel inner mounting plates, mortise housing, and internals
• Stainless steel trim plates, levers, bolt, latch, and strike
• Built-in spring assist on each lever prevents lever sag and insures lever return
• Field reversible handing without opening lock case
